3430mm stone forklift

Product Categories

Xiamen Sealand Development Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : SLD

Model Number : FDM756T-18

Certification : ISO, CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, L/C

Supply Ability : 100 units per month

Delivery Time : 25 working days

Packaging Details : 40HQ containers

Rated load : 18000kgs

Max. lifting height : 3430mm

Operating weight : 20500kgs

Load center : 600mm

Overall dimension（L×W×H） : 8130×2960×3370mm

Engine : Weichai or CUMMINS

Engine power : 162kw

Wheelbase : 3200±15 mm

Color : Yellow

New or Used : New

Contact Now

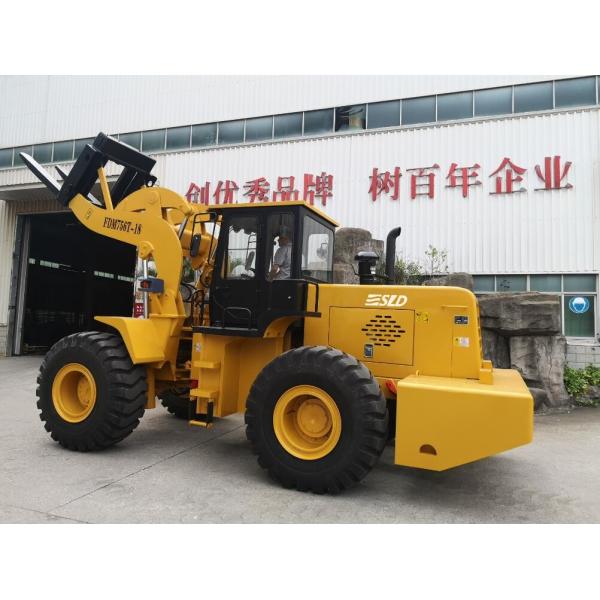

Rated Load 18000kgs Forklift Loader Use For Lifting Stone Block In Quarry

FDM756T-18 fork loading truck

The forklift loader with double rocker arm connecting rod can lift materials up to more than 18 Tons.
Powerful turbocharged engine with 6-cylinder 4-stroke for excellent performance and high torque reserve is low-oil consumption.
Beautiful streamlined appearance .Pressurized cabin with optional air conditioning and heating system provides comfortable operation environment .
Four-wheel ,dual-line and pliers disc brake system ensures safer and more reliable operation.
Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
Various working equipment and shovel can meet the requirements of different customers.
Used as both pallet fork and bucket .

Optional equipment

3430mm stone forklift

Item		Specification	Unit
Rated power		162	kw/h
Overall dimension(L×W×H)		8130×2960×3370	mm
Max. lifting height		3430	mm
Operating weight		20500	kg
Load center distance		600	mm
Maximum load		19000(≤200mm)	kg
Dimensions of fork	(L×W×H)	1500X200X105	mm
	Distance of fork	276-1080	mm
	Rated loading capacity	18000	kg
Turning angle		30/30	°
Max. Grade Ability		≥22	°
Wheel base		3200±15	mm
Wheel Tread		2300	mm
Min. Ground clearance		450	mm
Fuel tank capacity		220	L
Hydraulic fuel tank capacity		200	L
Specification of tyre		4*23.5-25-24PR

3430mm stone forklift
